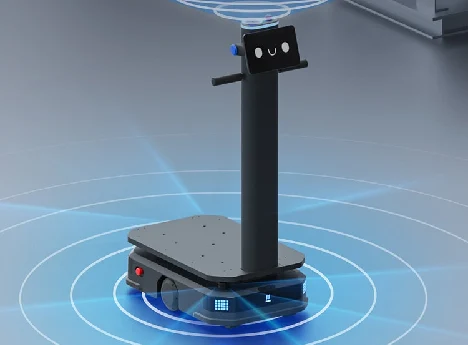

PUDU T600 Overview
The PUDU T600 is a heavy-payload industrial delivery robot designed for moving large payloads. Centered around a robust mobile chassis, it features a touch screen and handle for user-friendly operation. Features: Equipped with a built-in screen, it can be operated directly without a central control system. Includes a power-assist switch, quick-access buttons, and front indicator lights for easy and efficient use.
PUDU T600 Underride
The PUDU T600 Underride Version is a chassis-based industrial delivery robot. With a low-profile design, it can navigate beneath racks and lift them autonomously for material handling. Features: Compact form allows it to travel underneath rack units, enabling flexible navigation. Capable of lifting cargo from the center underneath, requiring minimal path clearance.
Features & Benefits

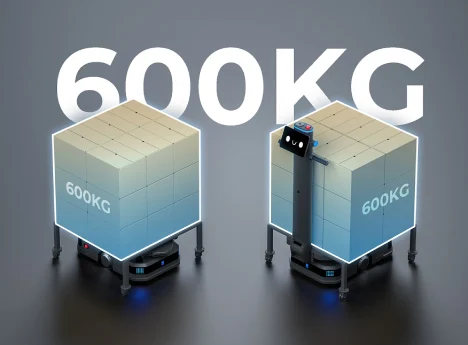

600 KG Payload Capacity
With a 600 KG payload capacity, the T600 series is built for heavy-payload material transport, greatly reducing delivery frequency and improving efficiency per trip.

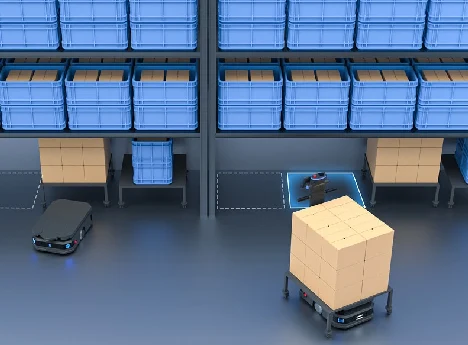

Rack Group Recognition
Powered by advanced navigation and perception systems, the T600 series intelligently identifies target storage locations and autonomously performs pick-and-place operations. This enables fully unmanned workflows, ensuring efficient and reliable warehouse operations.
Idle Elevator Priority Scheduling
In busy multi-elevator scenarios, the system intelligently calls idle elevators first. The smart scheduling algorithm monitors elevator status in real time, prioritizing available elevators to avoid peak-time congestion and resource waste, significantly improving cross-floor delivery efficiency.

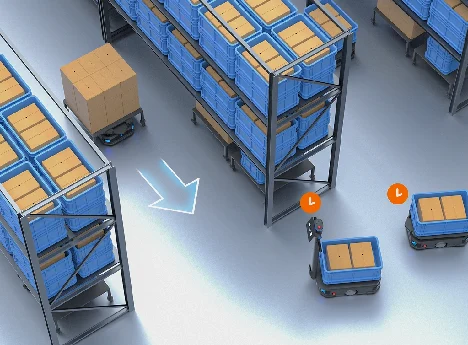

Narrow Aisle Intelligent Traffic Strategy
Based on path width and the robots‘ real-time load dimensions, the system intelligently determines whether to apply single-lane or dual-lane traffic modes. It dynamically adjusts routing strategies to maximize space utilization and improve multi-robot coordination efficiency in narrow environments.
Flexible Deployment
The T600 series can quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility modifications.
VDA5050 Protocol
Compatible with the VDA5050 standard communication protocol, enabling collaborative scheduling with other compliant robots and systems. No custom development or complex interface integration is required, allowing for rapid deployment of a unified, efficient, and scalable flexible logistics network.
On-premises Deployment
The system supports on-premises deployment to create a fully controlled and secure operating environment.

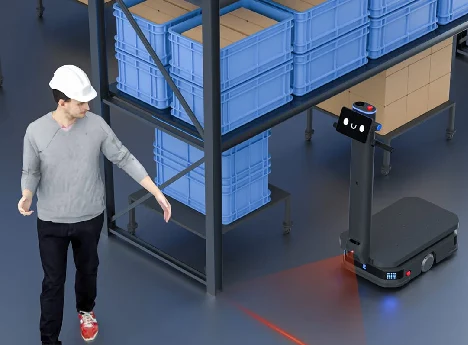

Ground Projection
Projects a linear warning mark in front of the T600 to indicate the travel area, creating a safe human-robot collaborative workspace.

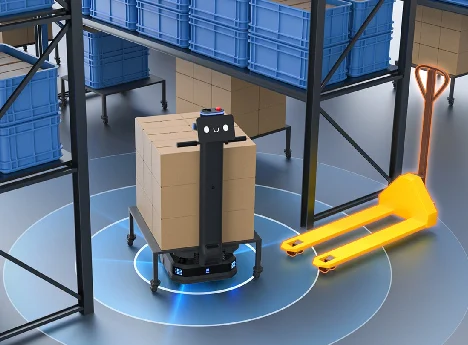

Dynamic Obstacle Avoidance
Autonomously detects low obstacles and flexibly navigates around them to ensure safe operation.
Disaster Avoidance Function
The PUDU T600 series is equipped with a dedicated disaster avoidance module that can intelligently receive signals such as fire alarms and earthquakes, and automatically execute avoidance plans: Autonomous navigation to a safe area. Intelligent judgment to stop and park at a safe location.

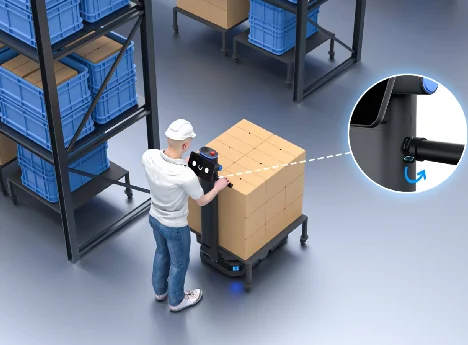

Handle Assist Switch
Equipped with an ergonomic handle assist switch, allowing the operator to easily control the T600 by simply pressing the switch, even when pushing heavy loads.
Shaping the Future of Robotics & Automation
At EdNex Automation, we are at the forefront of AI-powered robotics and automation delivering cutting-edge solutions that enhance operational efficiency, safety, and business outcomes across sectors
| Specification | Value |
|---|---|
| Dimensions | 960 mm × 500 mm × 1350 mm (37.8 in × 19.7 in × 53.1 in) |
| Weight | 112 kg (247 lbs) |
| Maximum Load | 600 kg (1322 lbs) |
| Battery Capacity | 30 Ah |
| Charging Time | 2 hours (0% to 90%) |
| Run-time | 12 hours (no load) |
| Cruise Speed | 0.2 ~ 1.2 m/s (0.67 ~ 3.94 ft/s) |
| Navigation Method | VSLAM + LiDAR SLAM |
| Minimum Passability | 70 cm (27.6 in) |
| Max. Surmountable Height | 10 mm (0.39 in) |
| Max. Surmountable Gap | 35 mm (1.38 in) |
| Operating Environment | 0°C ~ 40°C (32°F ~ 104°F) |
| Specification | Value |
|---|---|
| Dimensions | 845 mm × 500 mm × 255 mm (33.3 in × 19.7 in × 10.0 in) |
| Weight | 94 kg (208 lbs) |
| Maximum Load | 600 kg (1322 lbs) |
| Battery Capacity | 30 Ah |
| Charging Time | 2 hours (0% to 90%) |
| Run-time | 12 hours (no load) |
| Cruise Speed | 0.2 ~ 1.2 m/s (0.67 ~ 3.94 ft/s) |
| Navigation Method | LiDAR SLAM only |
| Minimum Passability | 65 cm (25.6 in) |
| Max. Surmountable Height | 10 mm (0.39 in) |
| Max. Surmountable Gap | 35 mm (1.38 in) |
| Operating Environment | 0°C ~ 40°C (32°F ~ 104°F) |
