Unitree Z1
High-performance robotic arm for research,
education, and mobile platform integration.
Unitree Z1 Overview

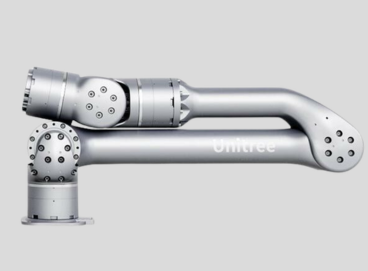

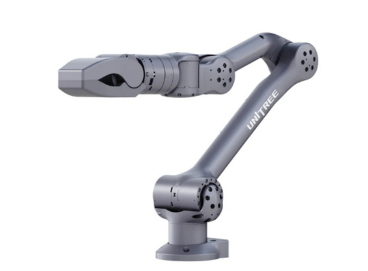

The Unitree Z1 is a compact, 6-degree-of-freedom robotic arm engineered for precision manipulation in research, education, and light industrial environments. Designed to integrate natively with Unitree's quadruped and humanoid platforms — and capable of standalone operation — the Z1 delivers an exceptional speed and torque-to-weight ratio, making it one of the most capable arms in its class. The Z1 is used in university robotics labs, R&D centers, smart manufacturing pilot programs, and as an extension for Unitree Go2, B2, and H1/H2 platforms. Its ROS compatibility and full SDK access make it a flexible tool for developers and researchers. The Unitree Z1 robotic arm is available in Dubai, UAE through Ednex Automation, official Unitree distributor for the UAE and GCC. We provide local sales, demonstrations, technical support, and after-sales service across the region.
Features & Benefits
6-DOF Precision Manipulation
Full six-degree-of-freedom range of motion enables complex pick-and-place, assembly, and manipulation tasks.
High Payload-to-Weight Ratio
Lightweight arm construction delivers strong payload capacity relative to its own weight, ideal for mobile platform mounting.

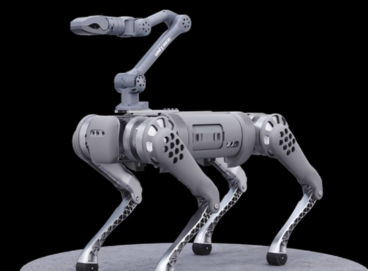

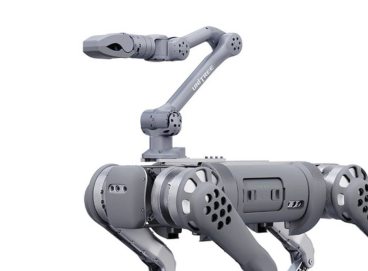

Native Unitree Platform Integration
Designed to mount directly on Unitree Go2, B2, and humanoid platforms for mobile manipulation applications.
ROS & SDK Compatible
Full ROS and ROS 2 support plus Unitree SDK access for custom development and research applications.
Quick-Mount Design
Rapid attachment and detachment system supports multi-robot workflows and reconfigurable deployments.
Compact Form Factor
Tabletop and mobile-friendly dimensions make the Z1 deployable in space-constrained lab and industrial environments.
|
Specification |
Z1 Air |
Z1 Pro |
|
Degrees of freedom |
6-axis |
6-axis |
|

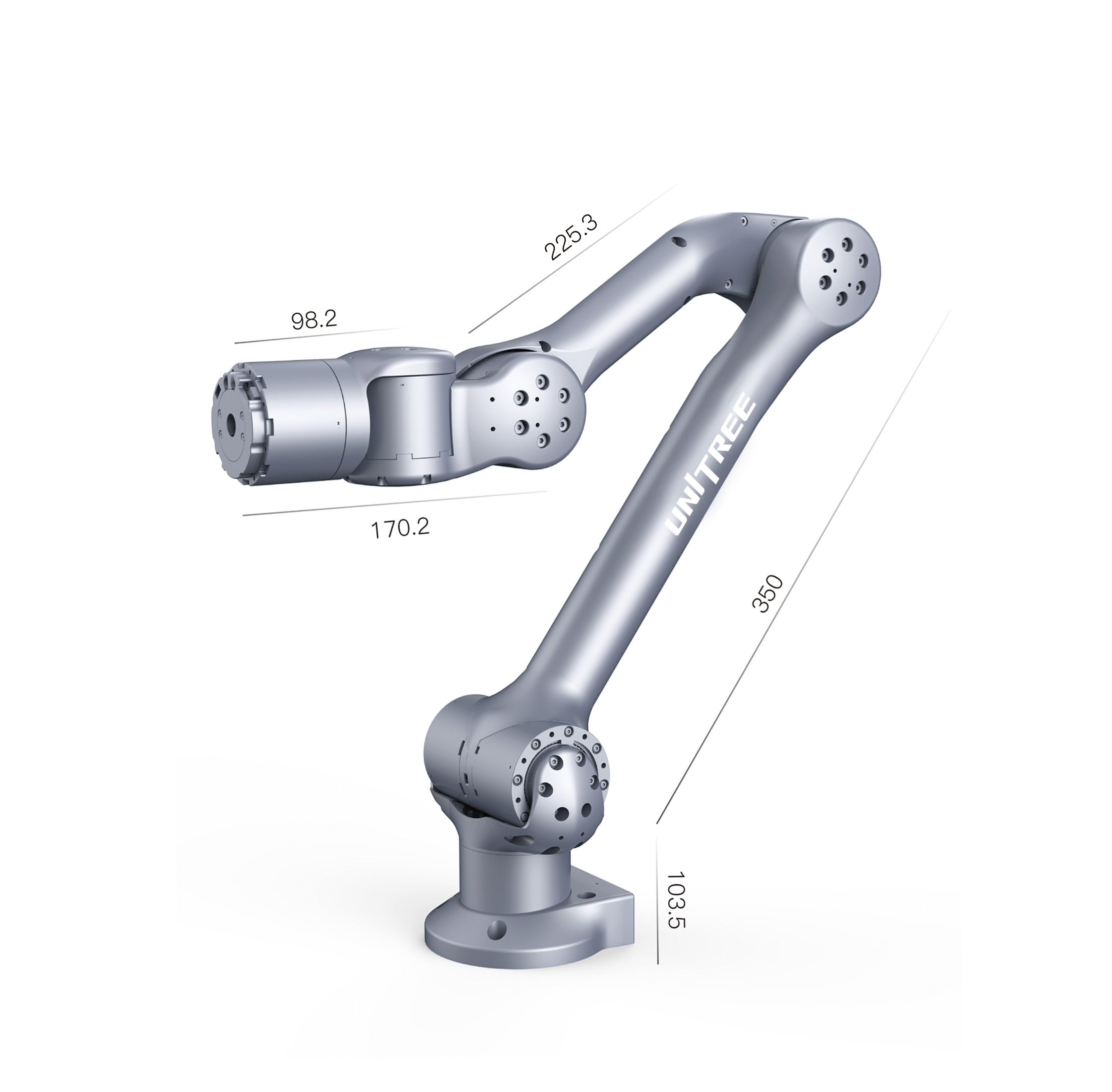

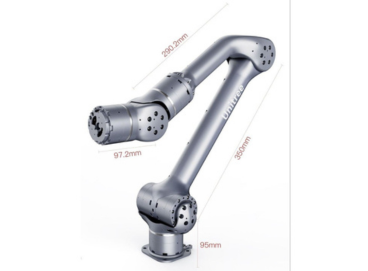

Max reach |
740 mm |
740 mm |
|
Weight |
~4.3 kg |
~4.5 kg |
|
Max payload |
2 kg |
3 kg |
|
Max joint speed |
180°/s |
180°/s |
|
Repeatability |
≈ 0.1 mm |
≈ 0.1 mm |
|
Control modes |
Position + force, collision detect |
Position + force, collision detect |
|
Interface / OS |
Ethernet · Ubuntu SDK |
Ethernet · Ubuntu SDK |
|
Power supply |
24 V · max 500 W |
24 V · max 500 W |
Applications
Robotic Research
Precision manipulation platform for academic and commercial research programs.
STEM Education
Hands-on robotics arm for university and advanced secondary education curricula.

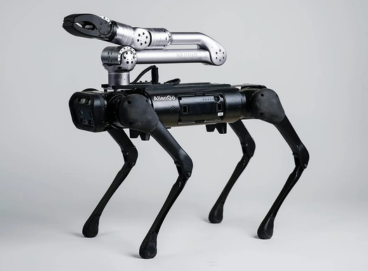

Mobile Manipulation
Mounted on Unitree quadrupeds or humanoids for object interaction in unstructured environments.
Pick-and-Place Automation
Light industrial pick-and-place and assembly pilot programs.
Cobot Workcells
Collaborative robot arm configuration for shared human-robot workspaces.
Technology Demonstration
Live demonstration platform for innovation labs, expos, and client showcases.
Integration & Support
- Native integration with Unitree Go2, B2, H1, and H2 platforms
- ROS / ROS 2 compatible; full SDK provided
- Tabletop and mobile mounting configurations available
- Full documentation, training, and onboarding by Ednex Automation local team
Frequently Asked Questions
Looking to buy the Unitree Z1 Robotic Arm in Dubai, UAE or anywhere across the GCC region?
Contact our sales team today for pricing, availability, and customized enterprise solutions.
